INTRODUCTION
The SIG SAUER® JULIET4™ Magnifier provides users the ability to engage longer range targets with more accuracy. This family of magnifiers is an excellent choice for transitioning from close quarters to intermediate ranged targets.
The JULIET4 4x Magnifier is designed to work as a stand-alone magnification solution or in conjunction with reflex optics.
In conjunction with a reflex optic, the JULIET4 can be adjusted for height through the use of spacers. It has a PowerCam 90° Mount so it can be quickly flipped to the side for more immediate, close quarters scenarios or deployed rapidly to bring targets four times closer. Its quick release mount comes with built-in recoil lugs for repeatable zero.
The JULIET4 has a front and rear thread-in lens protector to keep it secure from the elements. When mounted behind a Sig Sauer ROMEO Red Dot sight the quick-flip-away JULIET4 Magnifier allows the user to quickly change from close to long distance targets with a fast single handed operation.
FEATURES:
- Quick Release for easy removal when not in use
- Built-in recoil lugs for a repeatable zero
- Powercam 90° mount for fast transitions from close quarters to intermediate range targets
- Aircraft grade CNC aluminum housing ensures a lifetime of reliable service
- Dielectric coated prism
- IPX-8 waterproofing – rated for up to 20 meters for 1 hour
- Compact size & weight
- Adjustable height via included spacers (1.41″, 1.53″, and 1.63″)
- SpectraCoat™ – Highly efficient, ultra-wide broadband, anti-reflection lens coatings reduce surface reflections to extremely low levels across the entire visible spectrum providing superior light transmission.
- Stealth ID™ – Electro-Optics industrial design inspired by our legendary firearms; deflection armor trapezoidal surfacing breaks up the shape and visibility of the optic along with pistol slide serrations and grip checkering to add function to the form of all SIG SAUER electro-optics.
INSTALLATION:
**WARNING!**
Before working on your JULIET4 Magnifier always ensure that the firearm is unloaded with the safety on.
The JULIET4 comes with two separate mounting plates that allow the user to mount the magnifier behind optics ranging from 1.41” to 1.63”. If you need to raise the height of the JULIET4 you will need to remove your magnifier from the base and re-attach it with the correct riser plate and its corresponding length screws.
Once you have selected the correct height, mount the JULIET4 magnifier behind your red dot sight. Make sure that there is enough space between the two so that the magnifier can be rotated out of the way without making contact.
Adjust the torque of the adjustment screw on the opposite of the quick release lever so that the magnifier can be installed and removed without adjustment. If the adjustment screw is over tightened you will not be able to operate the quick release lever.
OPERATION:
JULIET4 magnifiers are designed to operate behind red dot sights. When the magnifier is not in use flip it to the side to return to 1x power
ADJUSTMENTS:

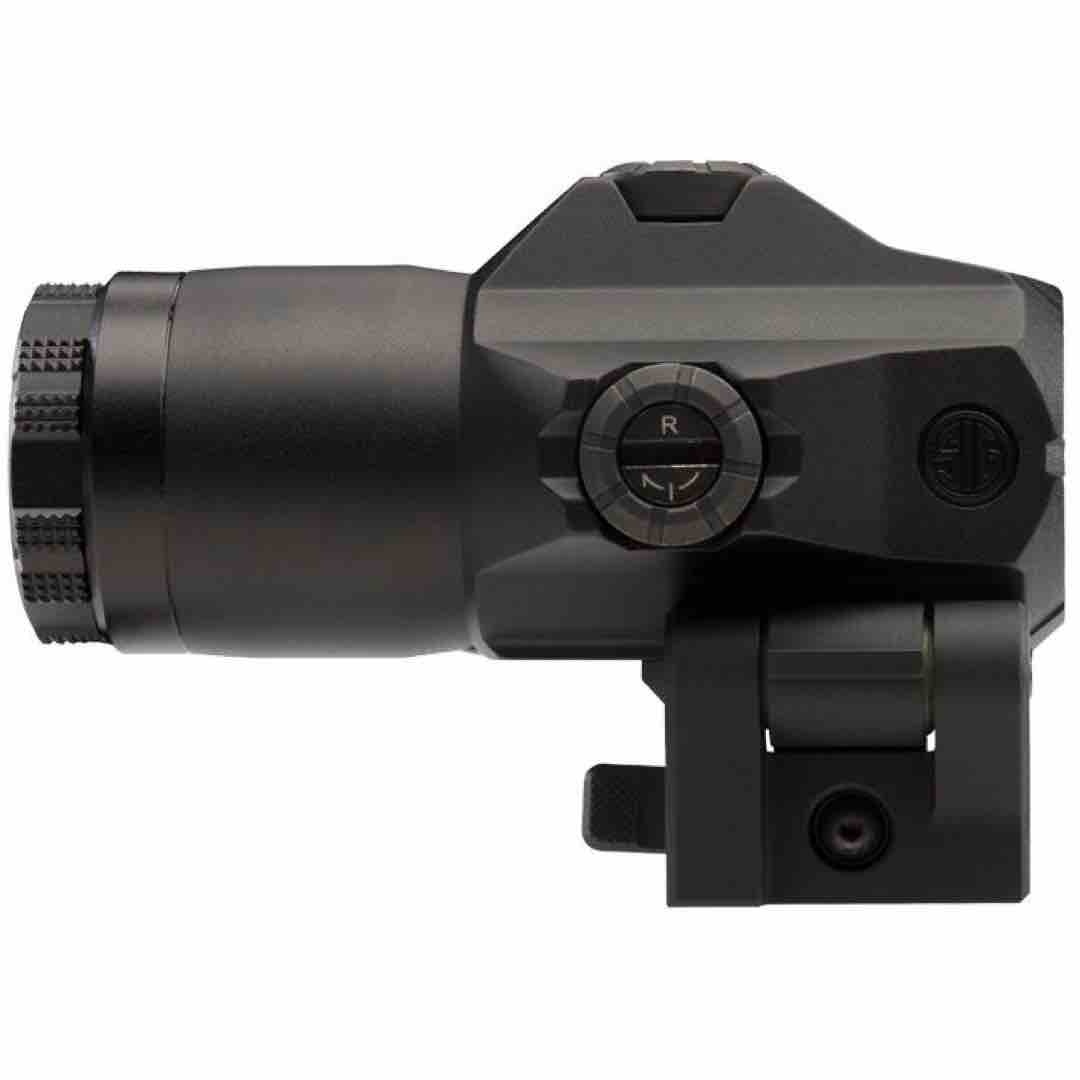

The JULIET4 should be adjusted to match your red dot sight. To do this, use the windage and elevation adjustment dials on the top and right side of the magnifier. You will want to adjust the magnifier so that the red dot is located in the center of the field of view. Adjusting the windage and elevation dials on your JULIET4 does not make changes to the POI of your firearm. Those adjustments will need to be made on your red dot sight.
The JULIET4 also has an adjustable diopter. To adjust the diopter rotate the diopter adjustment ring until the aiming feature is crisp and clear.
SIG SAUER Electro-Optics Infinite Guarantee™
SIG SAUER has manufactured the most rugged, dependable high-performance firearms for over two centuries. Our heritage of design, engineering and precision-manufactured quality predates the existence of any other optics company worldwide. We understand the importance of quality in the line of fire, at the shooting range or on your next hunt. SIG SAUER Electro-Optics had to earn the right to wear that badge and the Infinite Guarantee has your back, forever. Period.
We will repair or replace your SIG SAUER product in the event it becomes damaged or defective, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition. It doesn’t matter how it happened, whose fault it was, or where you purchased it.
SIG SAUER Infinite Guarantee™
- Unlimited Lifetime Guarantee
- Fully Transferable
- No Warranty Card Required
- No Receipt Required
- No Time Limit Applies
- No Charge
If you ever have a problem, no matter the cause, we promise to take care of you when it counts. Please note that our Infinite Guarantee does not provide coverage for intentional damage, misuse, cosmetic damage that does not affect the performance of the optic, loss, theft or unauthorized repair or modification. Excludes electronic components.
MAINTENANCE:
Cleaning- keep your lenses clear by using a soft cloth or lens pen. The best way to maintain image quality is by keeping your lenses clear of dirt and dust that cause scratches.
Always use lens covers and flip-backs to ensure that the sight optics remain scratch free.
SPECS:
Product Number | SOJ41001 |
COLOR | Black |
MAGNIFICATION | 4x |
OBJECTIVE LENS DIAMETER (MM) | 24mm |
TOTAL ELEVATION TRAVEL | 90 MOA |
TOTAL WINDAGE TRAVEL | 90 MOA |
FIELD OF VIEW | 6.25° |
EXIT PUPIL | 6mm |
DIOPTER ADJUSTMENT RANGE | ± 2 |
OVERALL LENGTH | 4.2 in (107 mm) |
OVERALL WIDTH | 2.1 in (53 mm) |
HEIGHT | 2.75 in (70 mm) |
WEIGHT | 12.5 oz (354g) |
WATERPROOFING | IPX 8 |
MOUNT TYPE | Quick Release Powercam / M1913 Picatinny |
