The QDT V2 Tripod Purpose and Applications:
The QDT V2 Ā Tripod has a sole purpose – to give shooters a competitive edge in shooting matches.
It features a quick deployment system with 2 leg sections and new, ratchet-locking tabs for even faster deployment. The new V2 series offers a more packable tripod because we reduced the center section. This also reduced the weight by about 1 pound from the original QDT tripod.
The QDT V2 features our new leg-stopper system which does not allow your tripod leg to cross in between the other legs when closing and transporting the tripod.
Features:
As the QDT is our most stable platform, it is 39″ collapsed so it is rather long when collapsed. This tripod offers ratcheting adjustment tabs for the legs, aluminum twist collars that are 1/4 turn twist for fast adjustment, as well as spikes stored inside of the rubber foot inverted. The smaller V2 base has reduced the overall weight of the tripod allowing for a more compact, smaller profile when strapped to the side of a pack. This tripod will only work with screw-on bases such as screw-on leveling heads, ballheads, or if using the anvil no adapter is needed – just screw right on top.
Ballhead Options:
- 55mm Dual Tension Arca
- 55mm Dual Tension Area 419 Clamp
- 44mm Dual Tension Arca
- 44mm Dual Tension Area 419 Clamp
- Any Screw-On Type Head / Insertable 75mm Head
- Ballheads Sold Separately

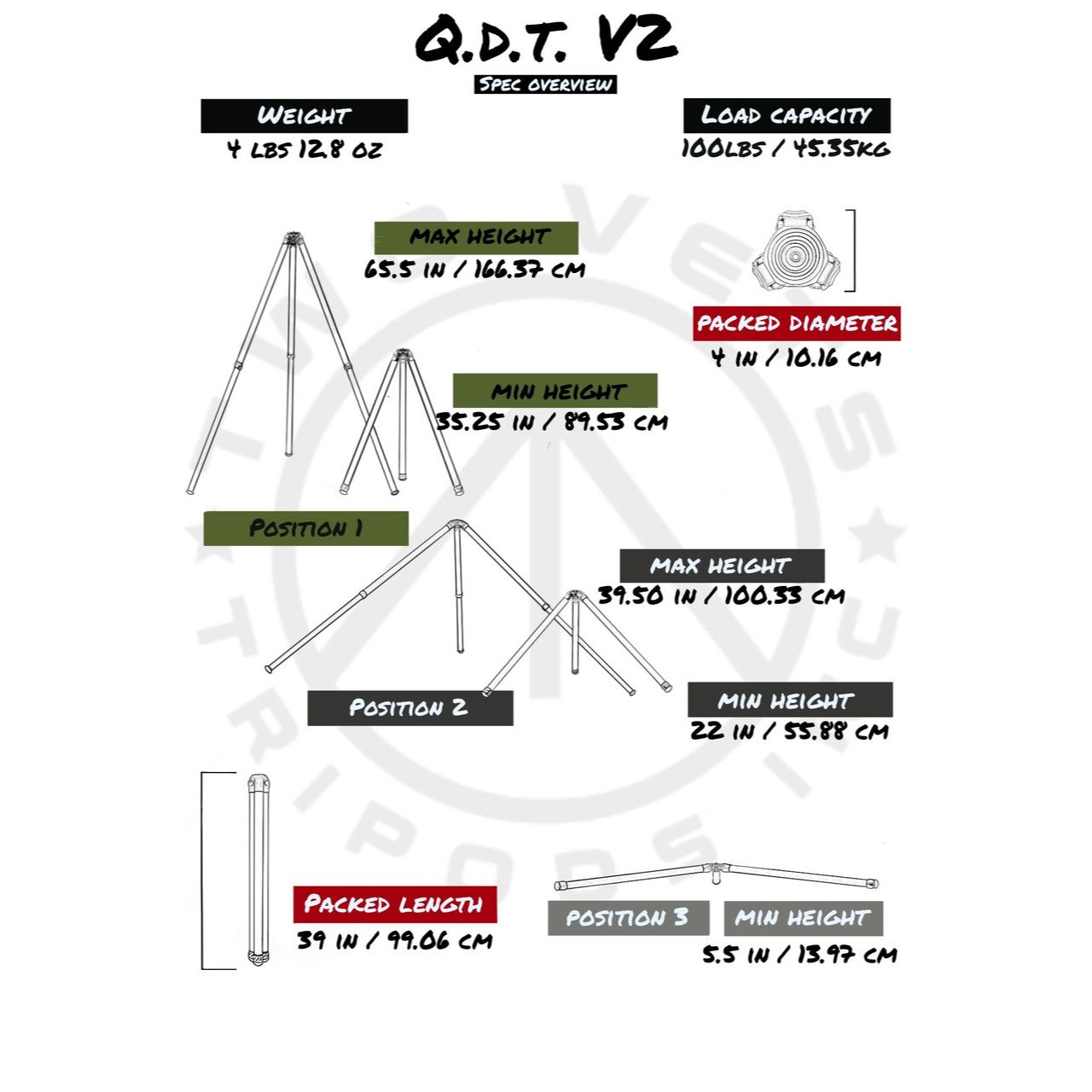

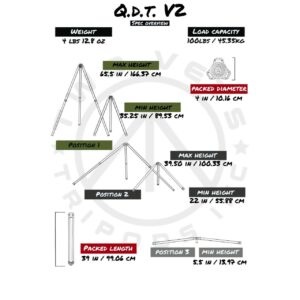

Specifications:
Weight | Ā 4.75 lbs. |
Leg Sections | Ā 2 / 1 Twist Locks |
Main Tube Diamater | 42mm Main Tube |
Collapsed Height | Ā 39 Inches |
Deployed Height | Ā 65.5 Inches |
Leg Adjustment Tabs | Ā Ratcheting Ears |
Twist Locks | Ā 1/4 Turn Twist Locks |
Integrated Spikes In Feet? | Ā Yes |
Head Options | Ā Ballhead |
What’s Included | Ā Tripod & Spiked Feet |
Max Weight Rating | Ā 100 lbs. |
How Do I Mount My Rifle?
Mounting your rifle to your new tripod is fairly simple:
Install an ARCA RAIL. On traditional rifles you will drill two holes into the stock near the magwell recess the t nuts into the barrel channel. (Select the “Stock” option from the drop-down box.)
For rifles with M-LOKĀ® style attachment points, we offer an M-LOKĀ® Compatible option for theĀ ARCA RAIL. This will simply attach to the bottom of the rifle and mount to any ballhead or leveling head offer. (Select the “M-LOKĀ® Compatible” option from the drop-down box.)
AR15/ Full length Picatinny Rails – for full length picatinny rails you can purchase the PICATINNY/ARCA ADAPTER
If you do not wish to drill holes in your rifle you can purchase a Triclawps SOLO for use on all rifles.
How T0 Mount Spotters or Binos:
Spotting Scopes – For spotting scopes there is typically a 3/8″ or 1/4″ hole on the bottom of the spotter. We sell 1/4 ” ARCA PLATES which will screw into the bottom of your spotter.
Binos – Binoculars can be mounted using our Bino Clamp. Sizing information is located HERE. The bottom of these bino mounts is Arca Swiss so it will mount directly to your ballhead or leveling head.
