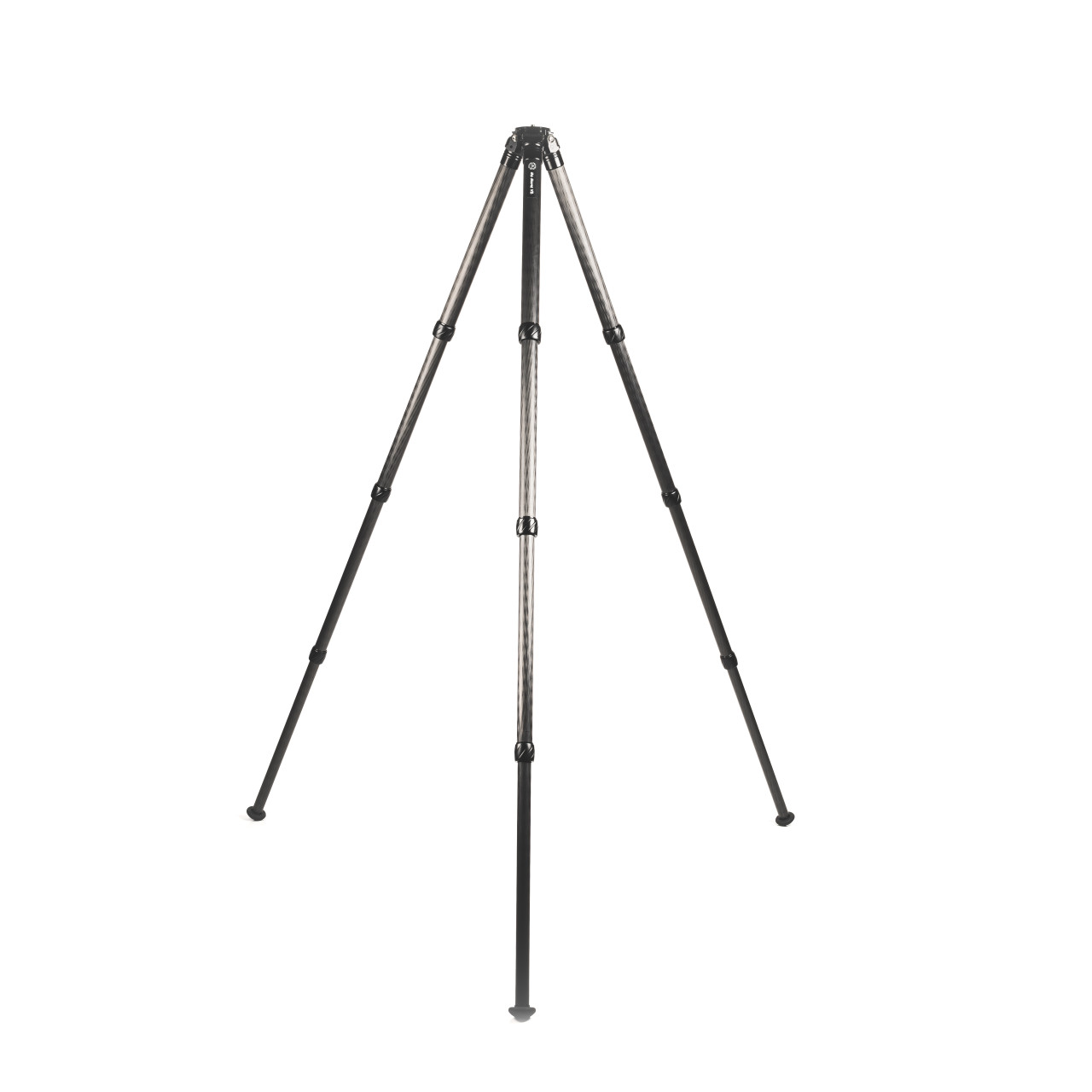

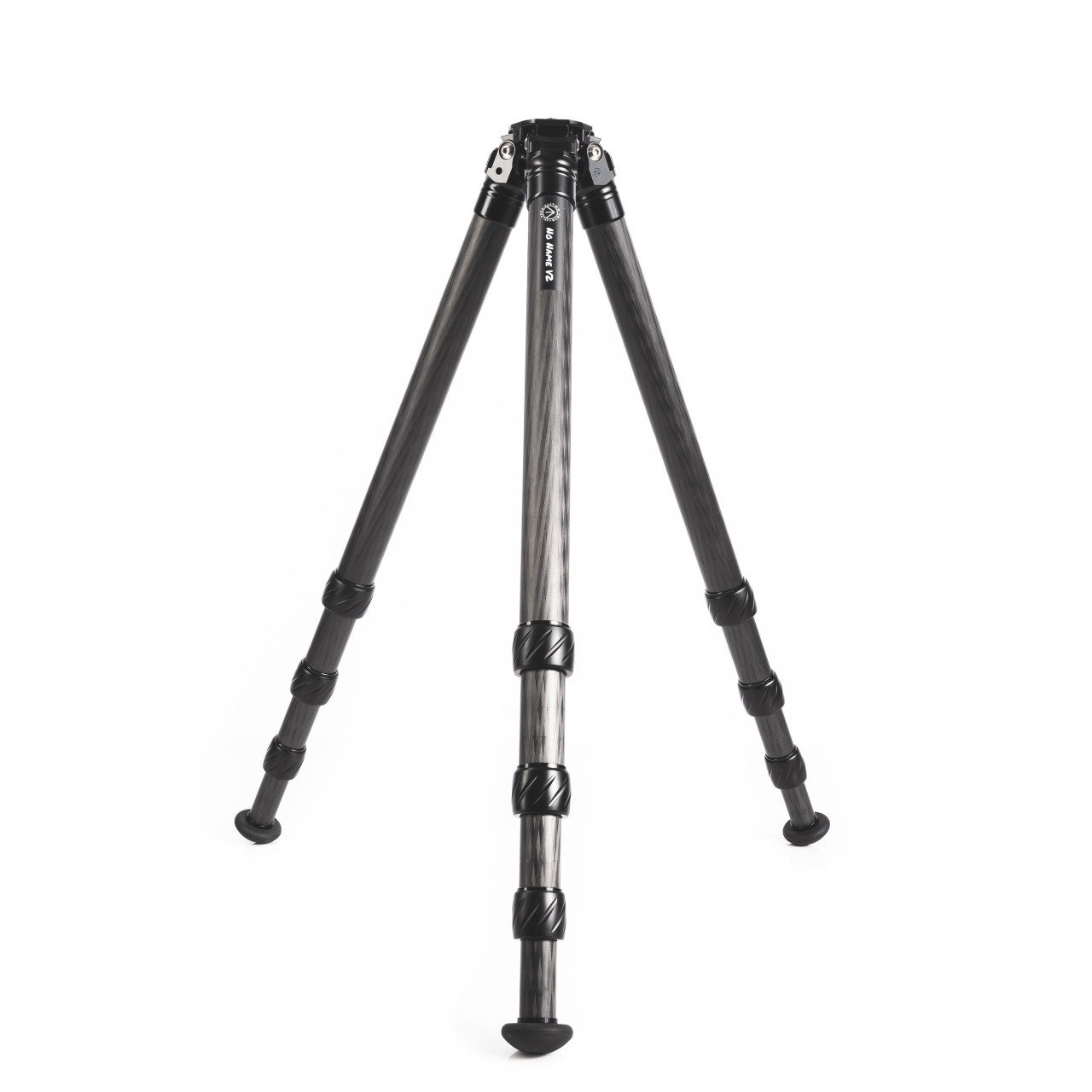

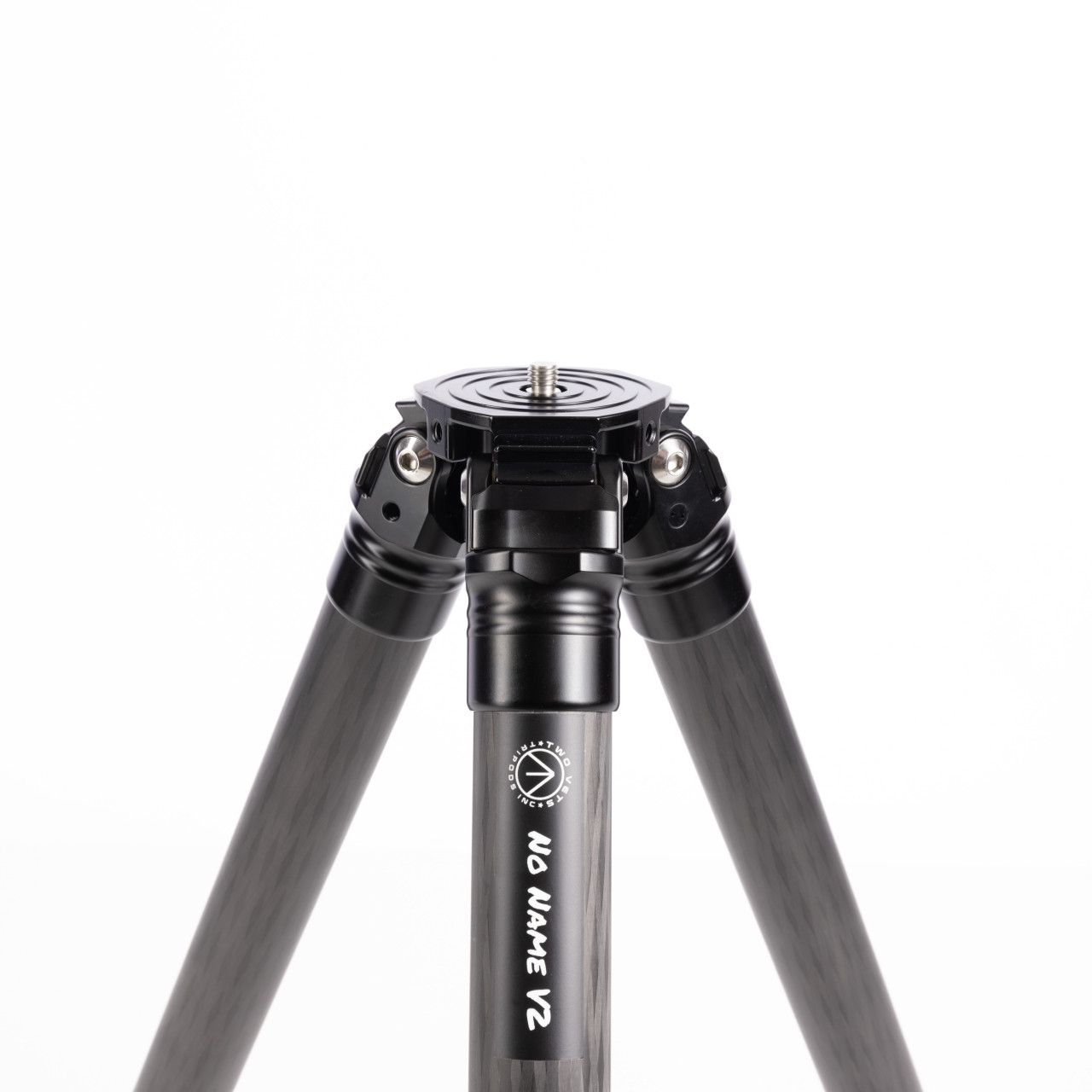

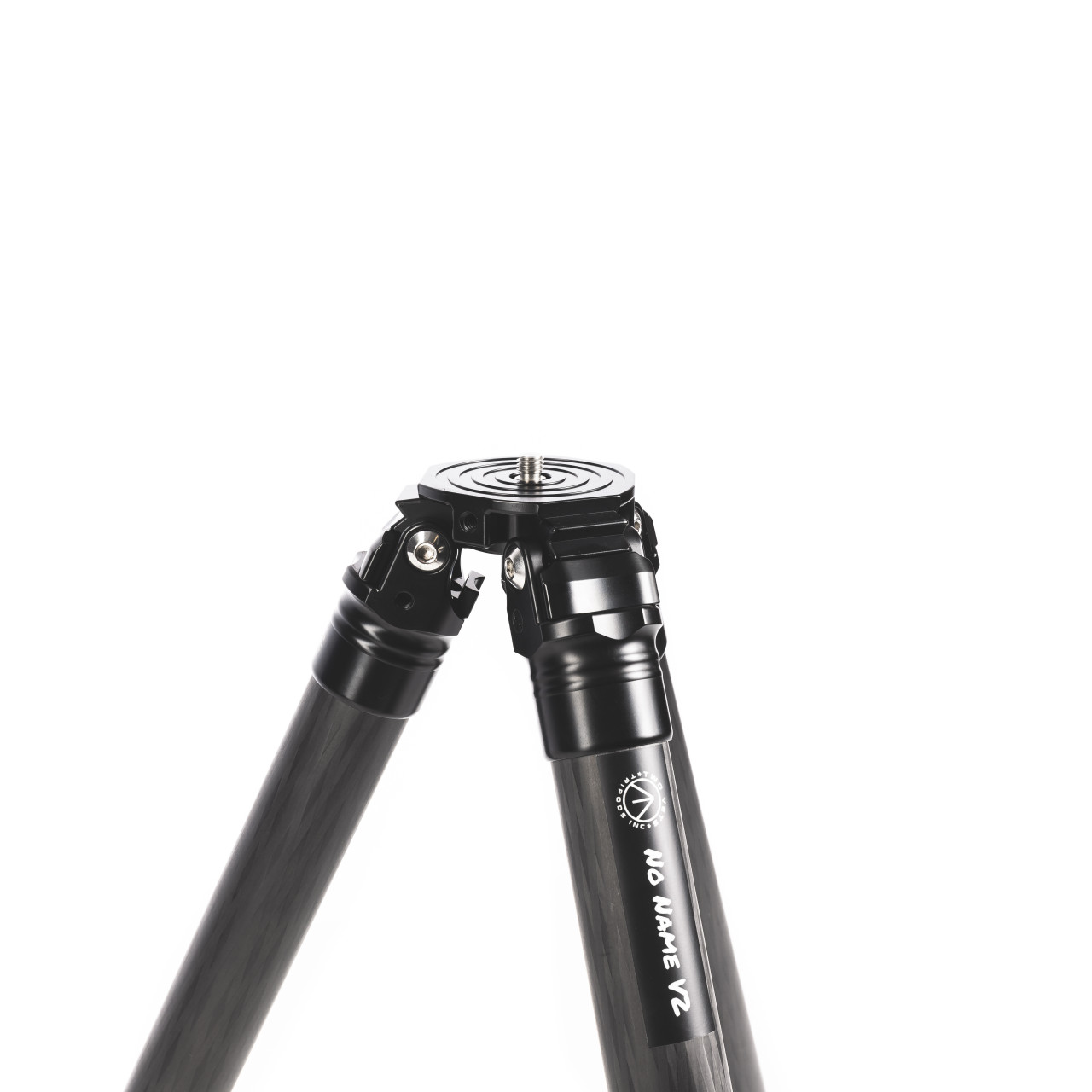

The No Name V2 is a smaller more compact package that still offers great stability and a light-weight platform.
- 55mm Dual Tension Arca
- 55mm Dual Tension Area 419 Clamp
- 44mm Dual Tension Arca
- 44mm Dual Tension Area 419 Clamp
- Any Screw-On Type Head

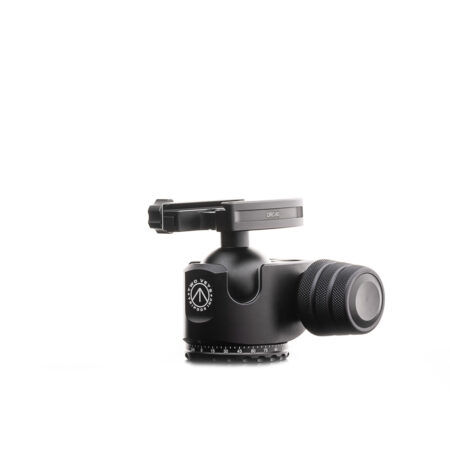

- Ballheads Sold Separately

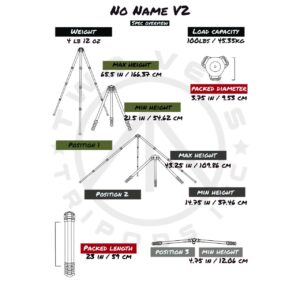

|Leg Sections||4 / 3 Twist Locks|
|Main Tube Diamater||38mm Main Tube|

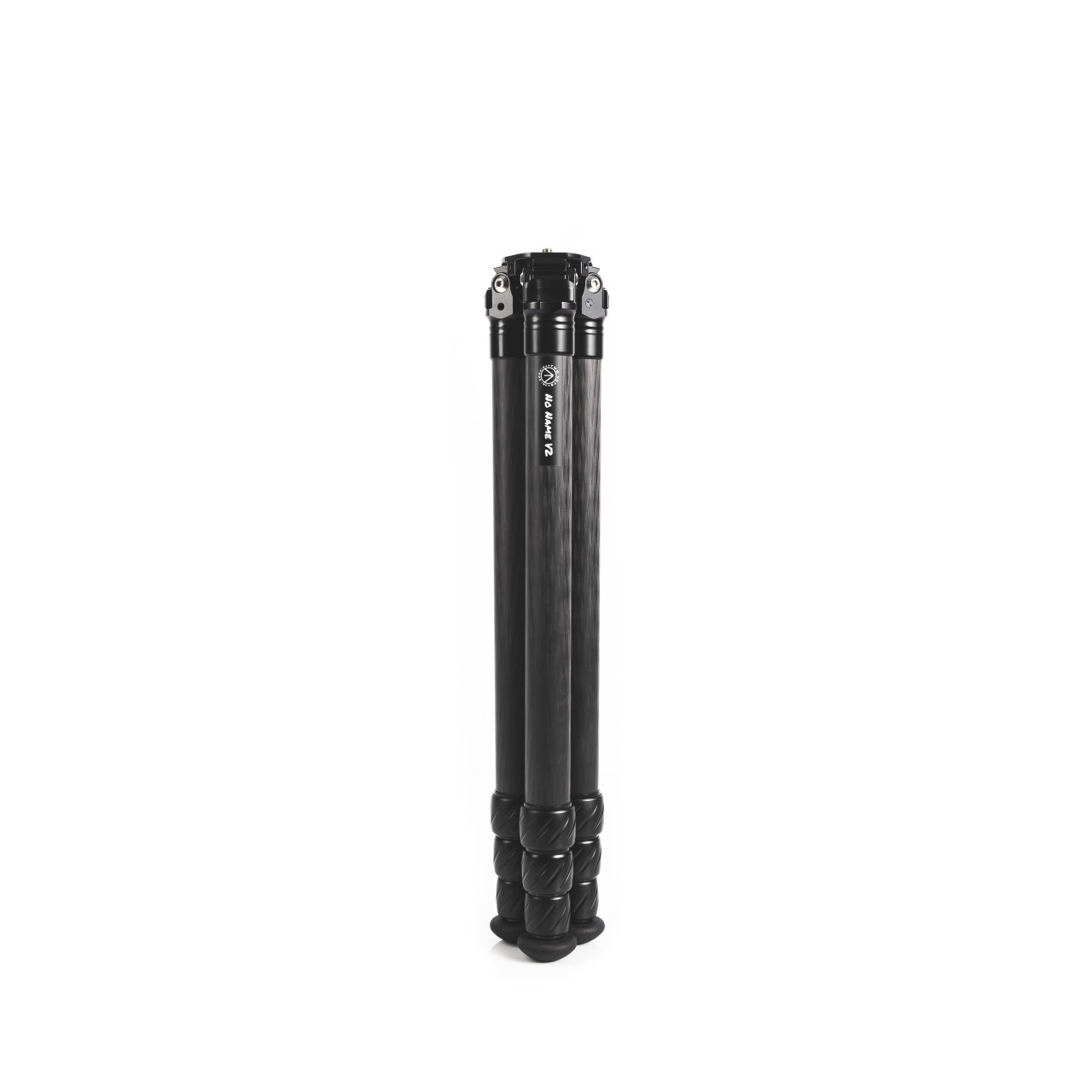

|Collapsed Height||23 Inches|
|Deployed Height||65.5 Inches|
|Leg Adjustment Tabs||Ratcheting Ears|
|Twist Locks||1/4 Turn Twist Locks|
|Integrated Spikes In Feet?||Yes|
|Whats Included||Tripod & Spiked Feet|
|Max Weight Rating||100 lbs.|
How Do I Mount My Rifle?
Mounting your rifle to your new tripod is fairly simple:
Install an ARCA RAIL. On traditional rifles you will drill two holes into the stock near the magwell recess the t nuts into the barrel channel. (Select the “Stock” option from the drop-down box.)
For rifles with M-LOK® style attachment points, we offer an M-LOK® Compatible option for the ARCA RAIL. This will simply attach to the bottom of the rifle and mount to any ballhead or leveling head offer. (Select the “M-LOK® Compatible” option from the drop-down box.)
AR15/ Full length Picatinny Rails – for full length picatinny rails you can purchase the PICATINNY/ARCA ADAPTER
If you do not wish to drill holes in your rifle you can purchase a Triclawps SOLO for use on all rifles.
How T0 Mount Spotters or Binos:
Spotting Scopes – For spotting scopes there is typically a 3/8″ or 1/4″ hole on the bottom of the spotter. We sell 1/4 ” ARCA PLATES which will screw into the bottom of your spotter.
