The Recon Tripod Applications:
The Recon tripod is designed for PRS Competition / Predator hunting / MIL / LEO. This tripod has a more compact, shorter profile at only 28.5 inches collapsed. This tripod offer ratcheting adjustment tabs for the legs, aluminum twist collars that are 1/4 turn twist for fast adjustment, as well as spikes stored inside of the rubber foot inverted. A great well-rounded tripod for packing in or moving in and out of buildings or long rucks. This tripod can accept any 75mm insertable base as well as any screw-on head. If you are running an anvil 30 the conversion bowl is recommended for this tripod.
Ballhead Options:
- 55mm Dual Tension Arca
- 55mm Dual Tension Area 419 Clamp
- 44mm Dual Tension Arca
- 44mm Dual Tension Area 419 Clamp
- Leofoto YB-75LK Leveling Head
- Anvil 30 Conversion Bowl
- Any Screw-On Type Head / Insertable 75mm Head
- Ballheads Sold Separately

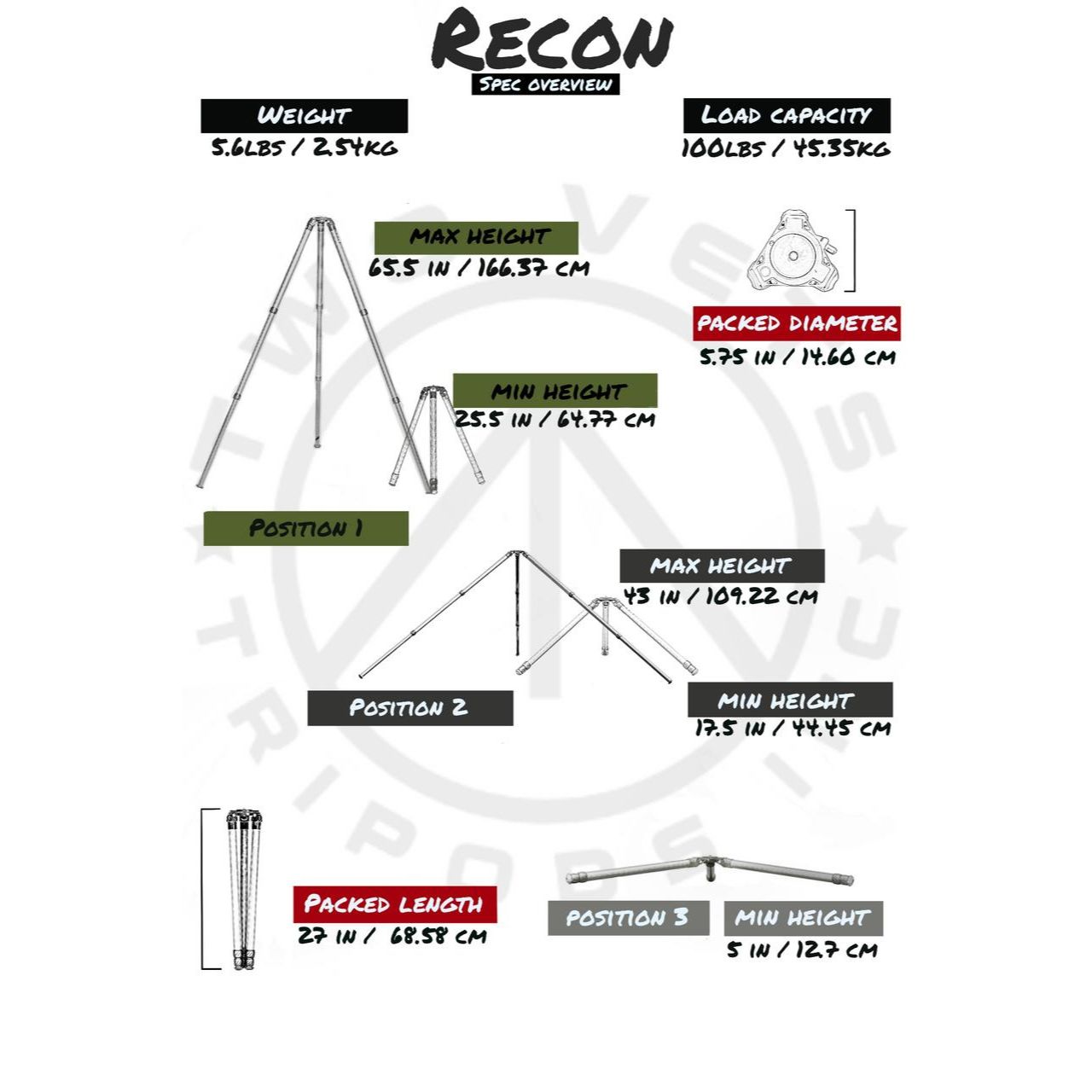

Specifications:
Weight | 5.56 lbs. |
Leg Sections | 3 / 2 Twist Locks |
Main Tube Diamater | 38mm Main Tube |
Collapsed Height | 27 Inches |

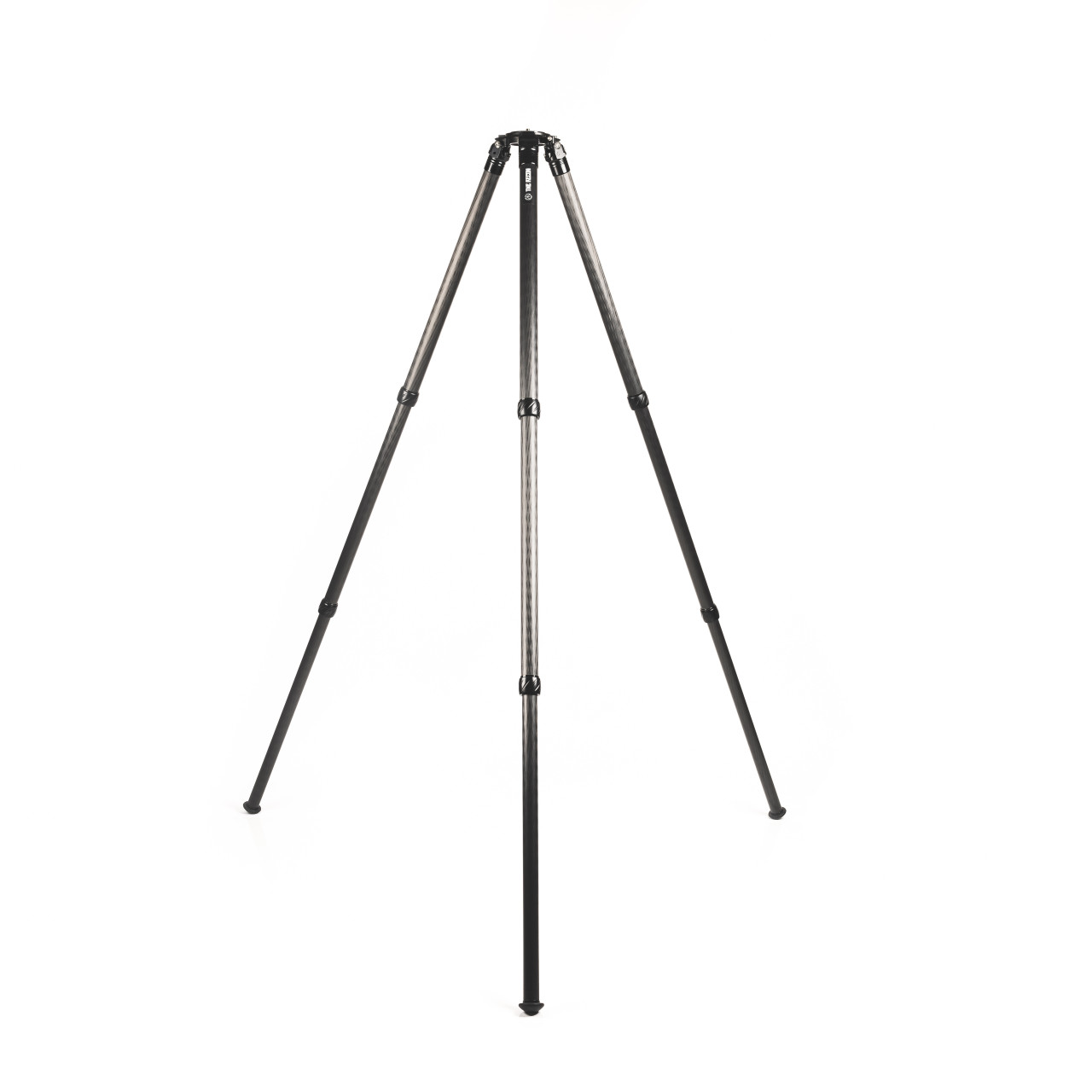

Deployed Height | 65.5 Inches |
Leg Adjustment Tabs | Ratcheting Ears |
Twist Locks | 1/4 Turn Twist Locks |
Intergrated Spikes In Feet? | Yes |
Head Options | Ballhead / 75mm Leveling Head |
Whats Included | Tripod & Spiked Feet |
Max Weight Rating | 100 lbs. |
How Do I Mount My Rifle?
Mounting your rifle to your new tripod is fairly simple:
Install an ARCA RAIL. On traditional rifles you will drill two holes into the stock near the magwell recess the t nuts into the barrel channel. (Select the “Stock” option from the drop-down box.)
For rifles with M-LOKĀ® style attachment points, we offer an M-LOKĀ® Compatible option for theĀ ARCA RAIL. This will simply attach to the bottom of the rifle and mount to any ballhead or leveling head offer. (Select the “M-LOKĀ® Compatible” option from the drop-down box.)
AR15/ Full length Picatinny Rails – for full length picatinny rails you can purchase the PICATINNY/ARCA ADAPTER
If you do not wish to drill holes in your rifle you can purchase a Triclawps SOLO for use on all rifles.
How T0 Mount Spotters or Binos:
Spotting Scopes – For spotting scopes there is typically a 3/8″ or 1/4″ hole on the bottom of the spotter. We sell 1/4 ” ARCA PLATES which will screw into the bottom of your spotter.
Binos – Binoculars can be mounted using our Bino Clamp. Sizing information is located HERE. The bottom of these bino mounts is Arca Swiss so it will mount directly to your ballhead or leveling head.
