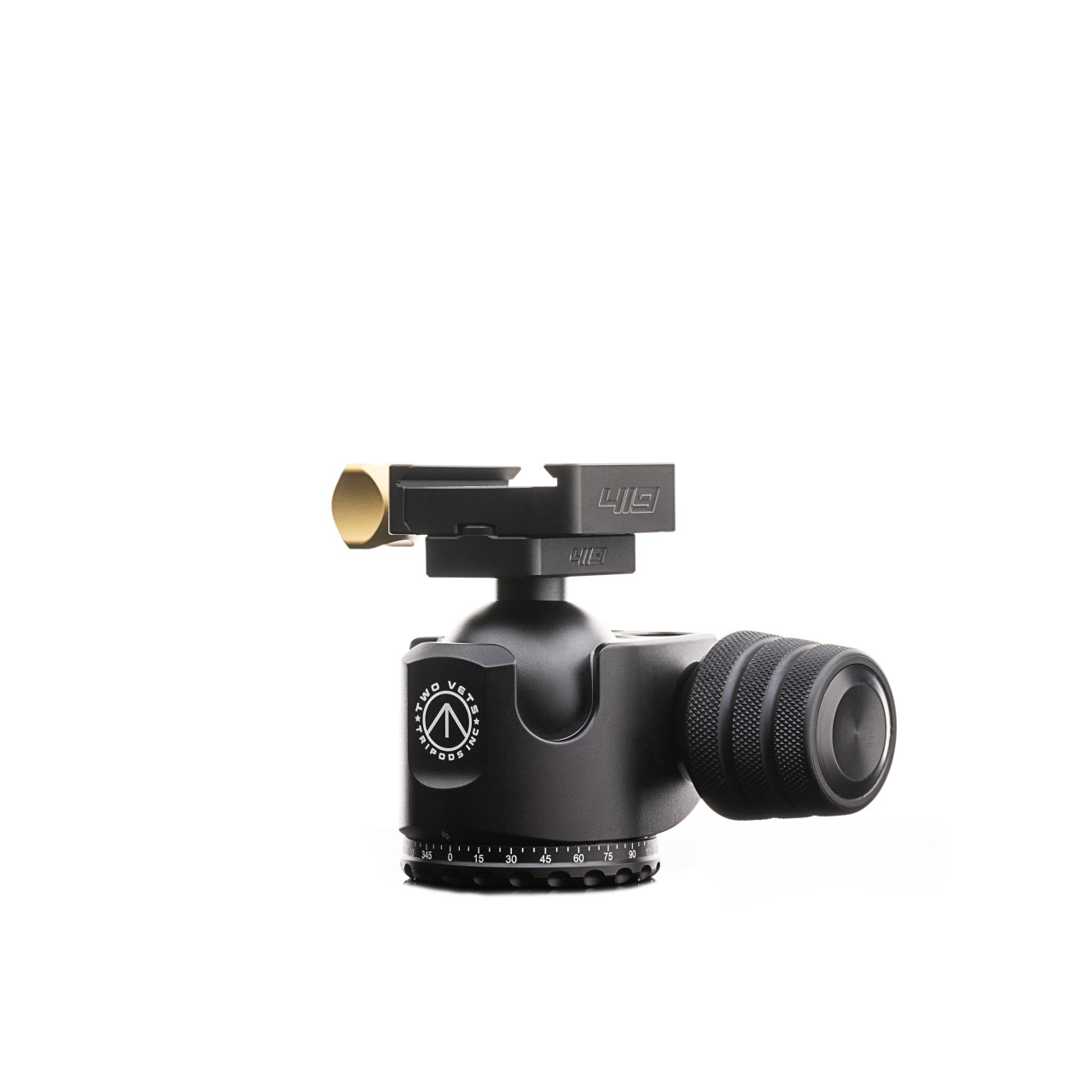

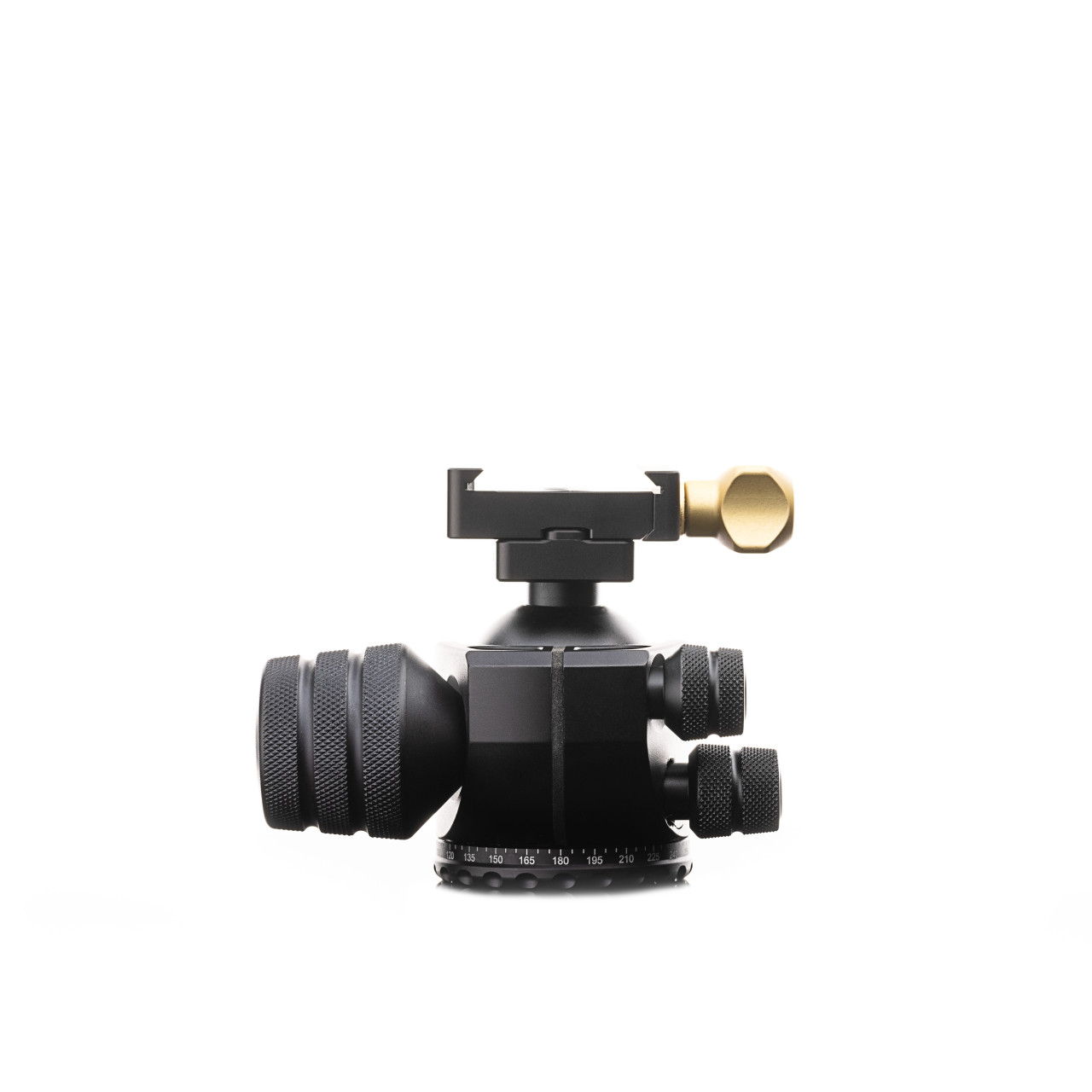

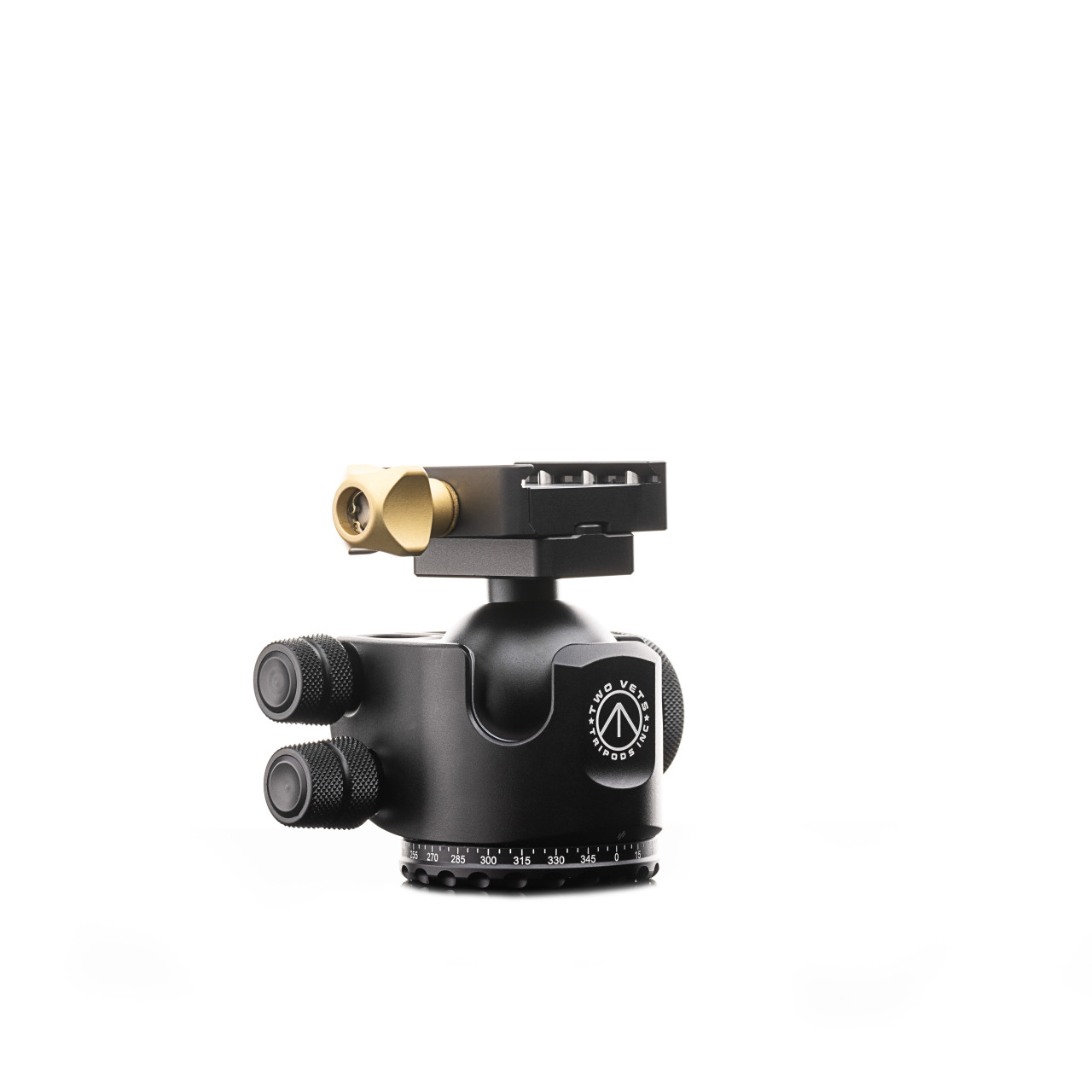

Our 44mm Tripod Ballhead Now With an Area 419 ARCALOCK Clamp!
We have teamed up with Area 419 to offer an Arcalock clamp on top of our 44mm tripod ballhead.
Dual Tension Adjustment
This tripod ballhead features dual adjustment – having a large knob for coarse adjustment and a smaller knob for fine adjustment. This really allows the user to get the ballhead dialed in for their shooting needs and shooting style.
44mm Tripod Ballhead Features:
Application: Hunting Rifles / Spotter
Dual Tension: Both Fine and Coarse Adjustment
Quick Release Plate
Weight: 1lb., 1 oz.
Max Load: 45lbs
We also offer our 55mm Tripod Ballhead with an Arcalock Clamp.
What is an Arca-Swiss Quick Release System?
Swiss camera equipment maker Arca-Swiss Phototechnik AG independently developed a quick-release mounting system for their tripod heads. The system is based on 38 mm wide mounting plates with a 45° dovetail rail on the sides, which is clamped into place on the tripod head receiver with a screw-fastened grabber plate.
In addition to its use in photography, the Arca-type dovetail rail has also become popular in shooting competitions such as the Precision Rifle Series for attaching auxiliary equipment such as bipods, tripods, etc. An advantage of the ARCA rail over traditional firearm mounts (such as the Picatinny rail) is that the ARCA rail allows for stepless sliding adjustment.
This clamping system, when run in conjunction with the Area 419 Arcalock rail, will alleviate the unwanted forward movement of the rifle while clamped into standard clamps. This clamp will also work with any other Arca-Swiss type rails on the market making it a no-brainer to offer on top of our ballheads.
